Semi-Frameless Sliding Shower Door, Clear Glass, Aluminum, Double Sliding(by pass)Design

Model No：LY8201 (55"~60")

Size：

44"~48" 49"~54" 55"~60"

Color：

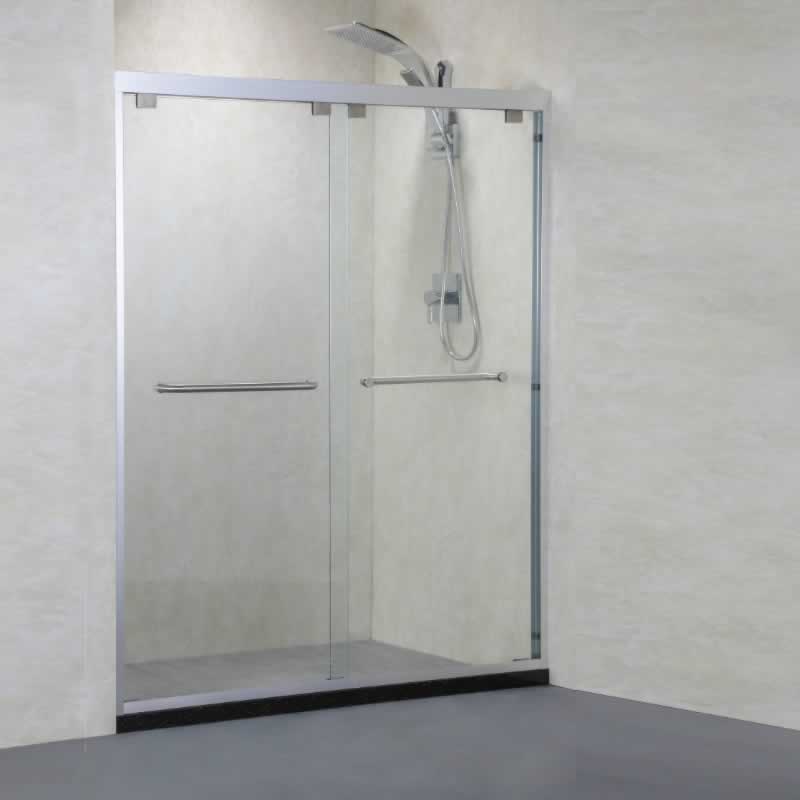

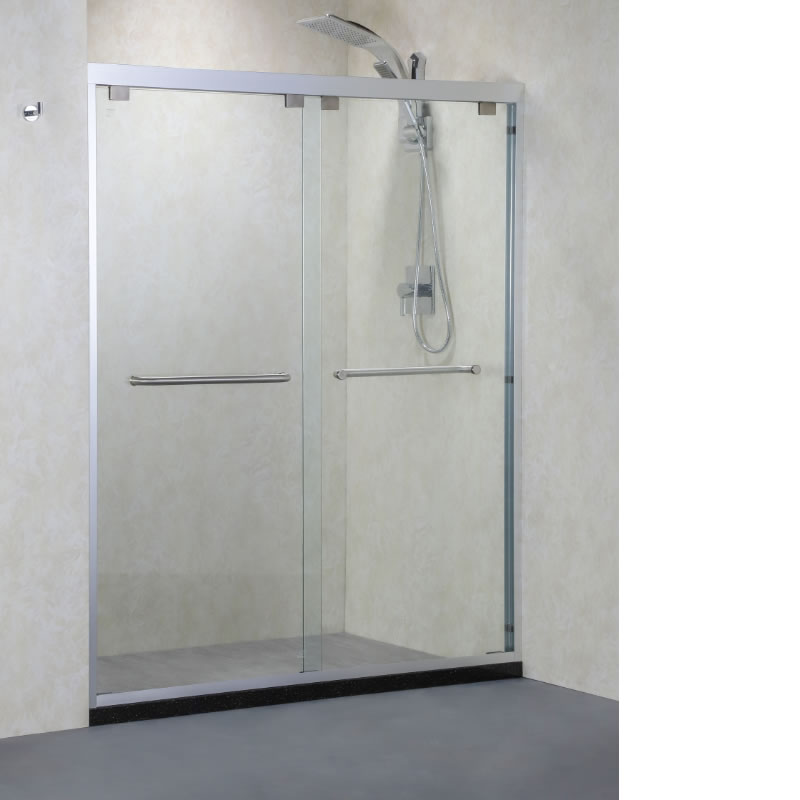

Brushed Nickel

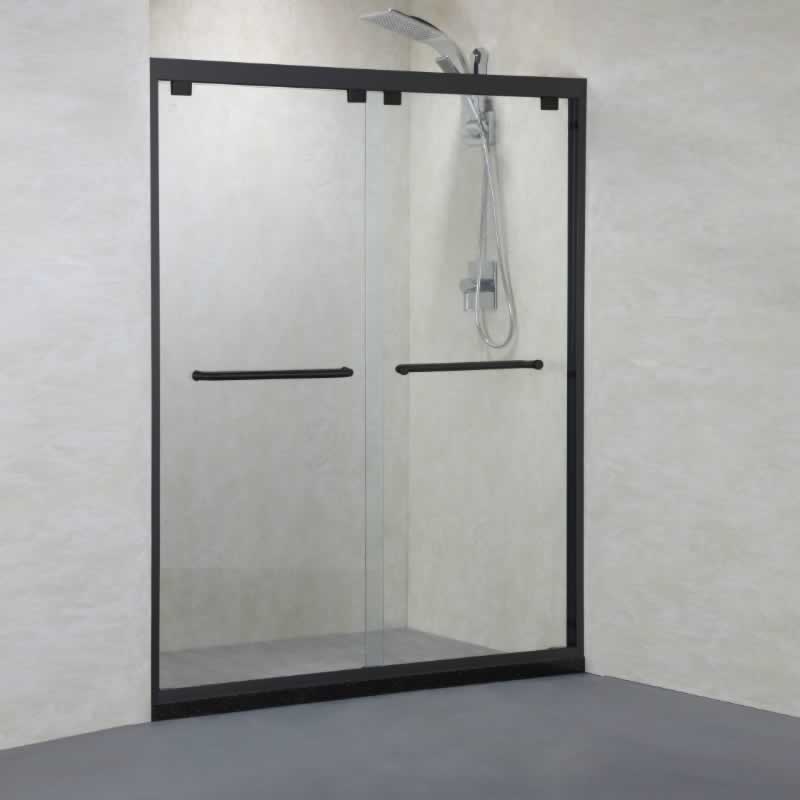

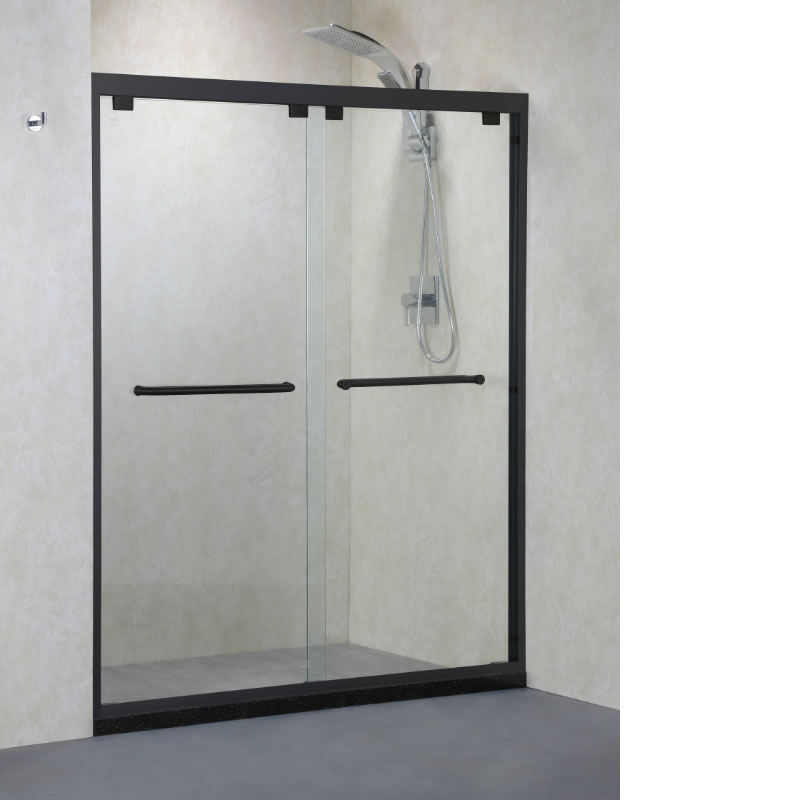

Matte Black

Detail：

• BYPASS SLIDING DOOR: Both doors slide across the track in both directions.

• SEMI-FRAMELESS GLASS: Premium 1/4 in. (6mm) thick certified clear tempered glass with water-resistant & shatter-proof film.

• QUALITY FINISHES: Premium Aluminum hardware finishing process prevents corrosion, rust, chipping and scratching and provides extended protection for your door.

• ADJUSTMENT: This door offers up to 5 in. in width adjustment by trimming the top and bottom guiderails to fit your opening.

• SMOOTH and SILENT GLIDING: Smooth roller to track contact ensures a serene sliding experience.

• EASY INSTALL: This door was designed and manufactured to be easily installed. Installation manual can be downloaded.

Price：

login to see price

NY Warehouse：In Stock

NY Warehouse：Coming Soon

Qty：

Installation Manual Installation Video

Adjustment Calculations

Choose your dimensions

Product that fits：

Cut the Rail：

Calculation of the adjustment. Choose your actual size and we will tell you the product size you should choose and the size you need to cut.

Description

LY8201

Model Number：LY8201

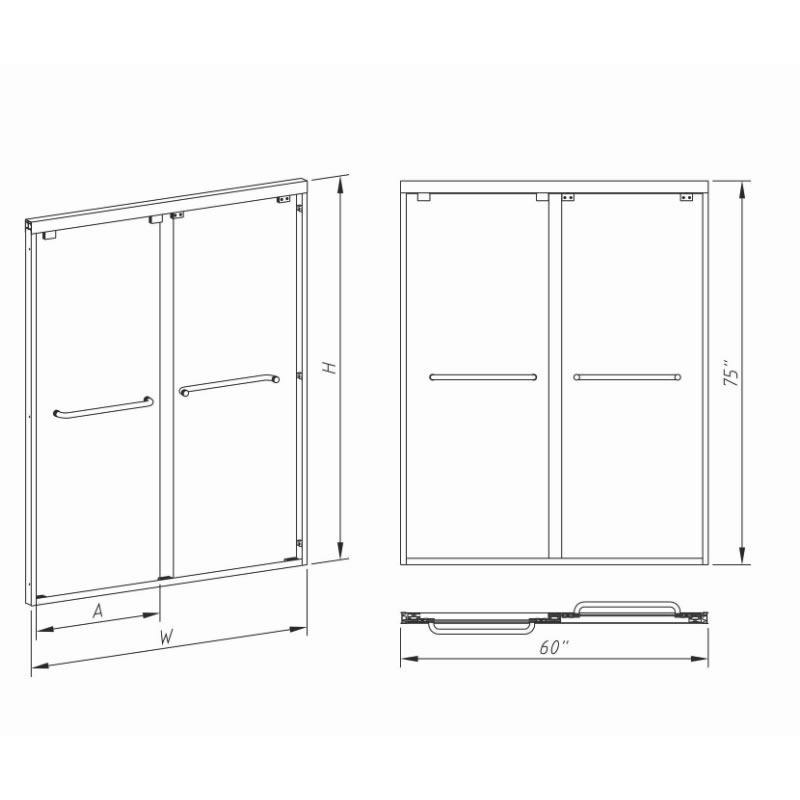

Model Size:	Walk-In Opening:
44-48 in. W x75 in. H	17-1/2 in.~21-1/2 in.
49-54 in. W x75 in. H	19-1/2 in.~24-1/2 in.
55-60 in. W x75 in. H	22-1/2 in.~27-1/2 in.

Configuration consists of:

Double sliding bypass design allows access to the shower from the left or right side.

Glass：

6mmtempered glass

- Waterproof and anti-fouling explosion-proof film

- Frameless glass design creates an open, airy feeling

- Anodized aluminum guide rails can be trimmed up to4 in. for width adjustment, please refer to the Adjustment Calculations

- Anodized aluminum wall profiles

- Reversible for a right or left door opening installation

Hardware Finish:

Brushed Nickel

Matte Black

- Anti-splash guard to prevent water spills

- IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)

- Professional installation is required

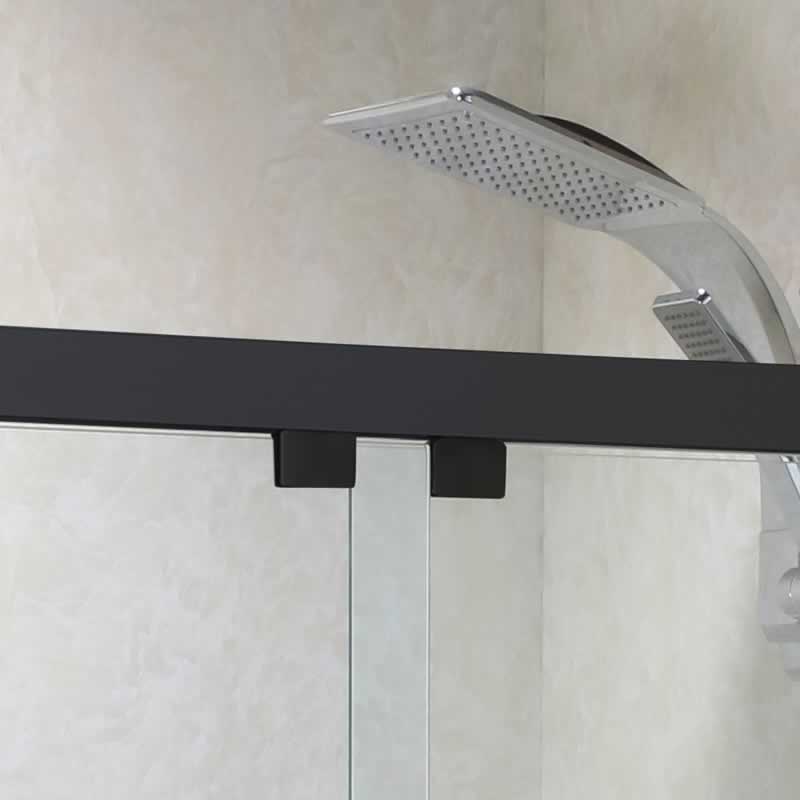

- Specially designed rollers create a smooth, quiet gliding operation

- Large wheel assembly creates effortless sliding action

- ATTENTION! This model has NO adjustment for out-of-plumb (uneven) walls

- Wall profiles accommodate up to 3/8 in. for out-of-plumb (uneven walls)

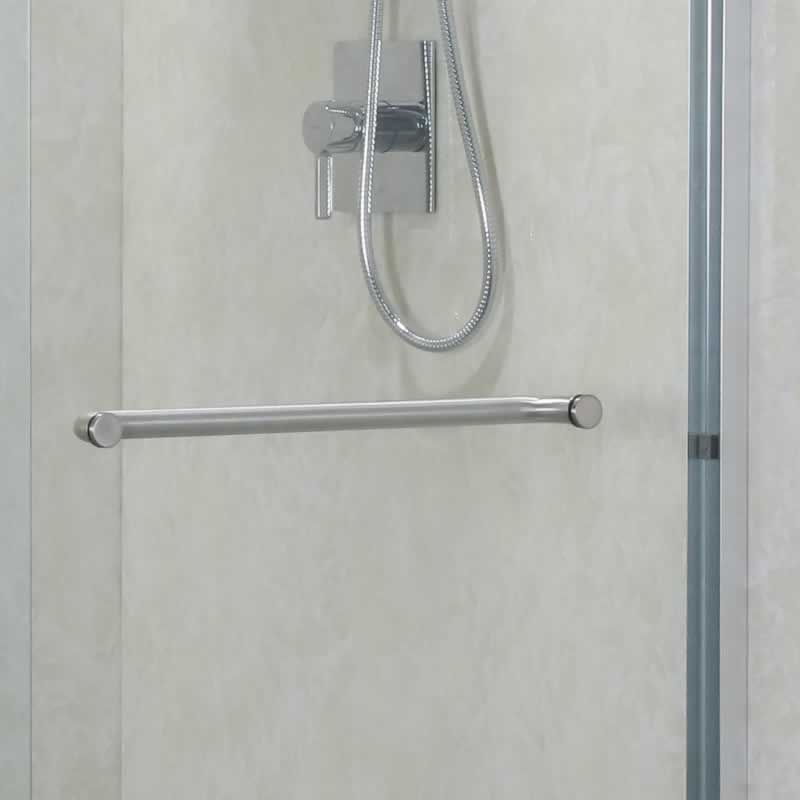

- Two convenient towel bars double as handles on each panel

- PASGO Shower Doors have ten years Limited Manufacturer Warranty (Brushed Gold and Matte Black finishes limited to 1 (one) year warranty)
