Choose your dimensions
Product that fits：
Cut the Rail：
• CENTER SLIDING ENCLOSURE: Two stationary
panels and two sliding doors.
• SHOWER BASE: Matching Acrylic Neo round
shower base (Model: BR38) is available for the shower enclosure.
• SEMI-FRAMELESS GLASS: Premium 5/16 in. (8mm)
thick certified clear tempered glass with water-resistant & shatter-proof
film.
• QUALITY FINISHES: Premium metal hardware
finishing process prevents corrosion, rust, chipping and scratching and
provides extended protection for your door.
• SMOOTH and SILENT GLIDING: Smooth roller to
track contact ensures a serene sliding experience.
• EASY INSTALL: This door was designed and
manufactured to be easily installed. Installation manual can be downloaded.
NY Warehouse：Please contact sales for stock information
Calculation of the adjustment. Choose your actual size and we will tell you the product size you should choose and the size you need to cut.

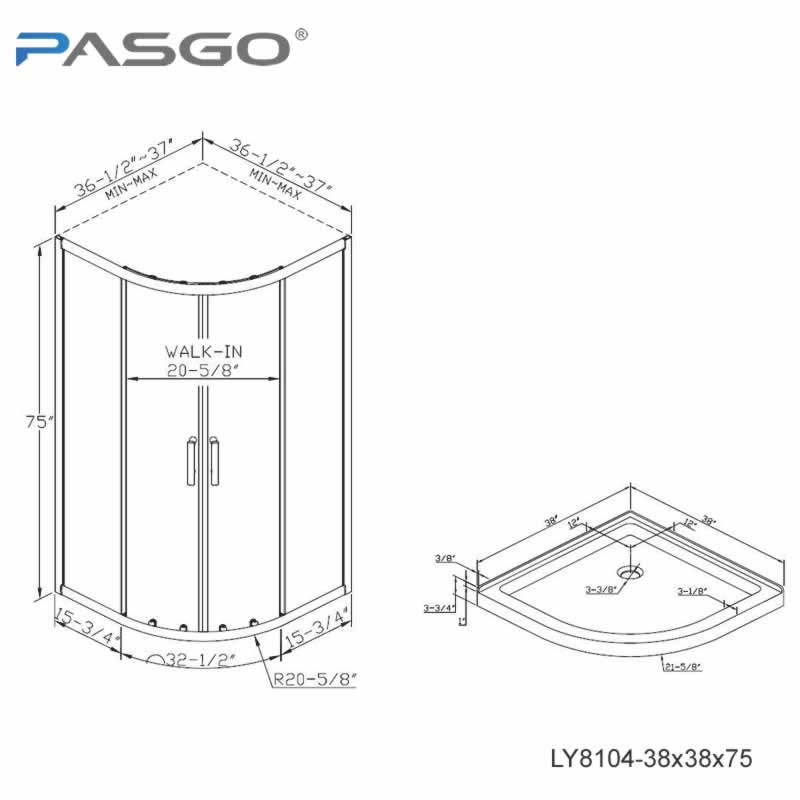

LY8104
Model Number：LY8104

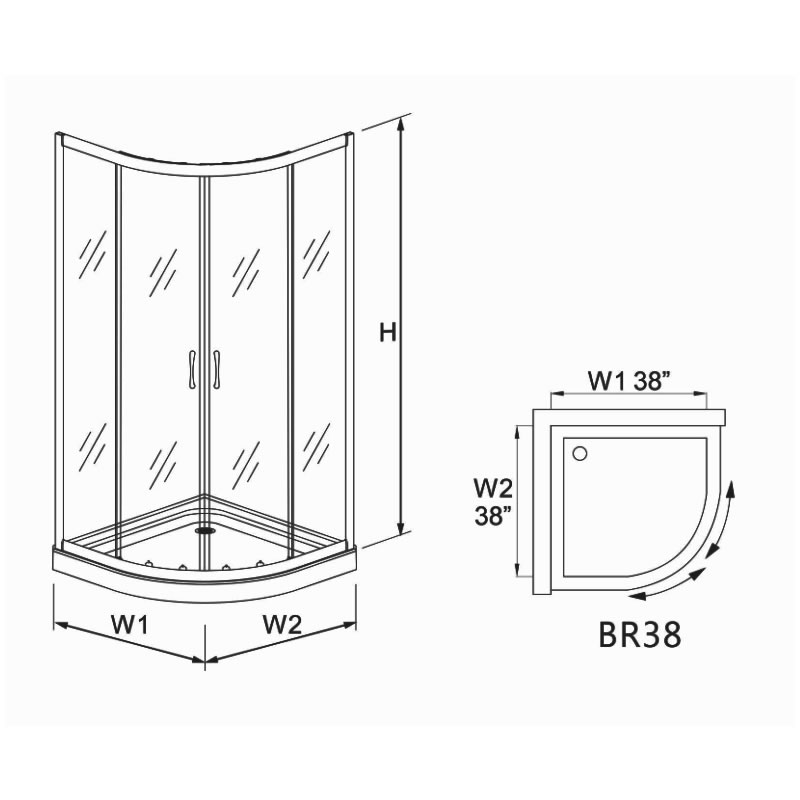

Model Size:
38 in. W x38 in. D x75 in. H
Shower Base:
38 in. W x38 in. D x 3-1/2in. H
Configuration consists of:
Double sliding bypass design allows access to the shower from the left or right side.
Glass：
Premium 5/16 in. (8mm) thick certified clear tempered glass
- Frameless glass design creates an open, airy feeling -
- Anodized metal guide rails can be trimmed up to4 in. for width adjustment, please refer to the Adjustment Calculations
- Anodized metal wall profiles
Hardware Finish:
Polished Chrome
- Anti-splash guard to prevent water spills
- Optional shower base available (sold separately)
- IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)
- Professional installation is required
- Specially designed rollers create a smooth, quiet gliding operation
- Large wheel assembly creates effortless sliding action -
- ATTENTION! This model has NO adjustment for out-of-plumb (uneven) walls
- Wall profiles accommodate up to 3/8 in. for out-of-plumb (uneven walls)
- PASGO Shower Doors have ten years Limited Manufacturer Warranty (Brushed Gold and Matte Black finishes limited to 1 (one) year warranty)
