LY1206

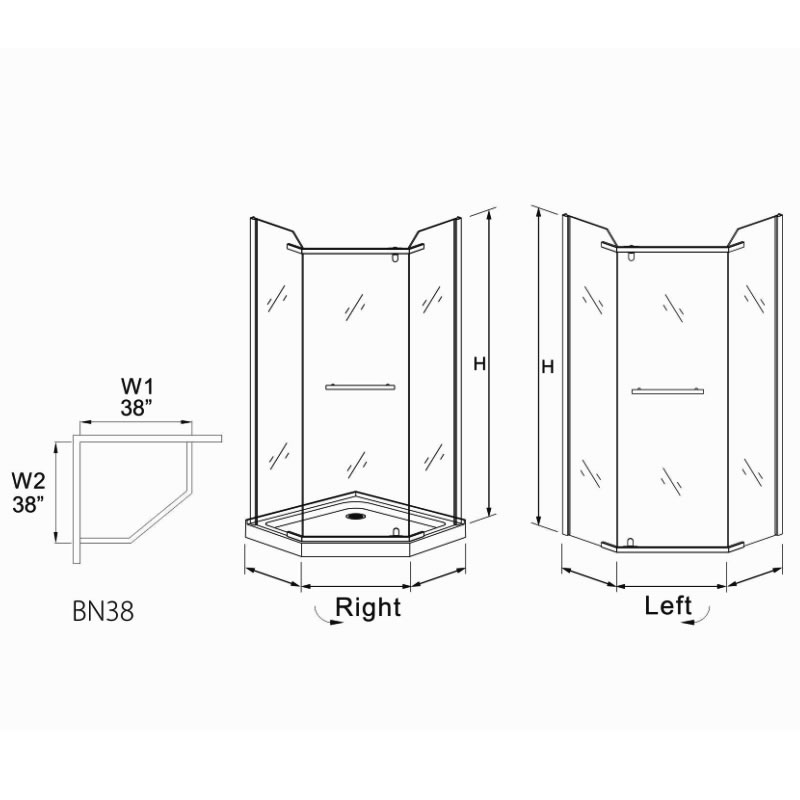

Shower Base:BN38

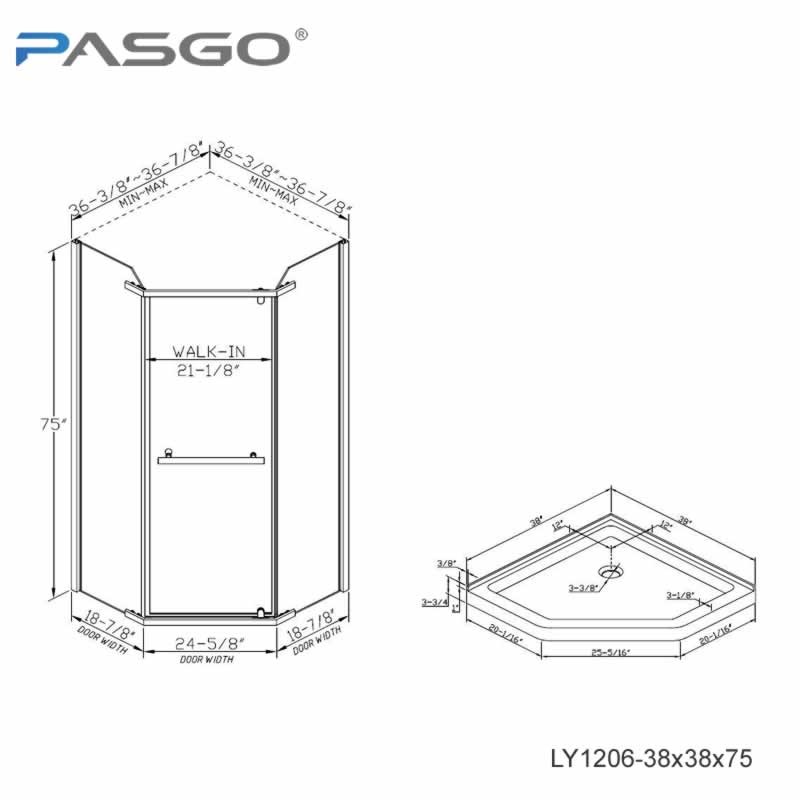

Model Number:LY1206
Model Size:
|

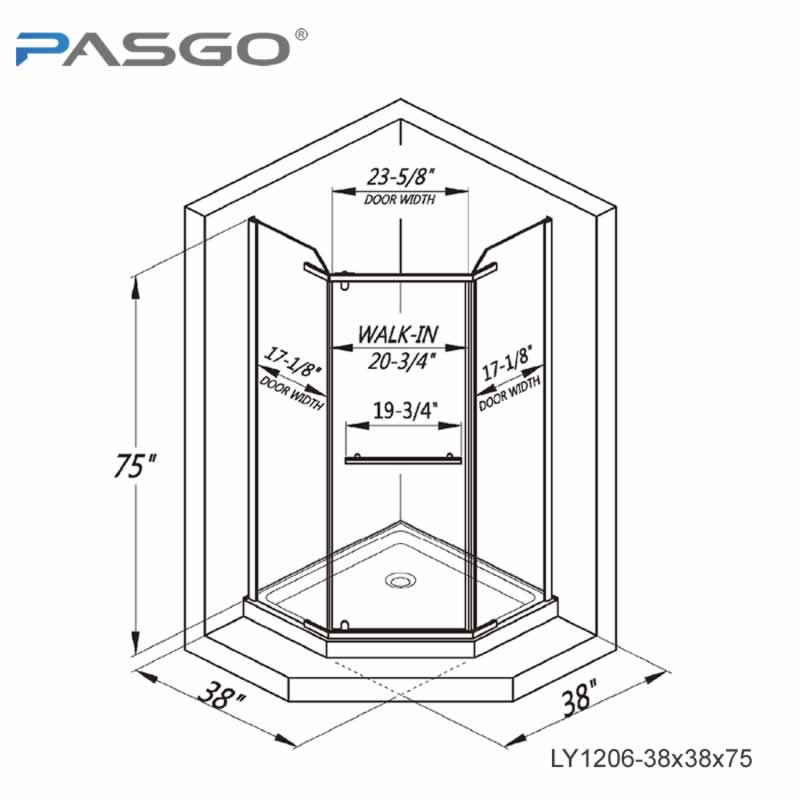

Walk-In Opening:
|
38 in. W x38 in. D x75 in. H
|
20-3/4 in.
|
Shower Base:
38 in. W x38 in.
D x 3-1/2in. H
Configuration consists of:
Stationary
Panel and Sliding Door
Glass:
Premium
5/16 in. (8mm) thick certified clear tempered glass
- Waterproof and anti-fouling explosion-proof film
- Frameless glass design creates an open, airy feeling
- Stainless Steel Top guide bar can be trimmed up to4 in. for width adjustment, please refer to
the Adjustment Calculations
- Reversible for a right or left door opening installation
Hardware Finish:
Polished
Chrome
- Anti-splash guard to prevent water spills
- Optional shower base available (sold separately)
- IMPORTANT! All
measurements should be taken only AFTER walls are finished (tile, back walls,
etc.)
- Professional installation is required
- Specially designed rollers create a smooth, quiet gliding
operation
- Large wheel assembly creates effortless sliding action
- ATTENTION! This model has NO adjustment for out-of-plumb (uneven)
walls
- Wall profiles accommodate up to 3/8 in. for out-of-plumb (uneven walls)
- Two convenient towel bars double as handles on each panel
- PASGO Shower Doors have ten years Limited Manufacturer Warranty (Brushed Gold and Matte
Black finishes limited to 1 (one) year warranty)
