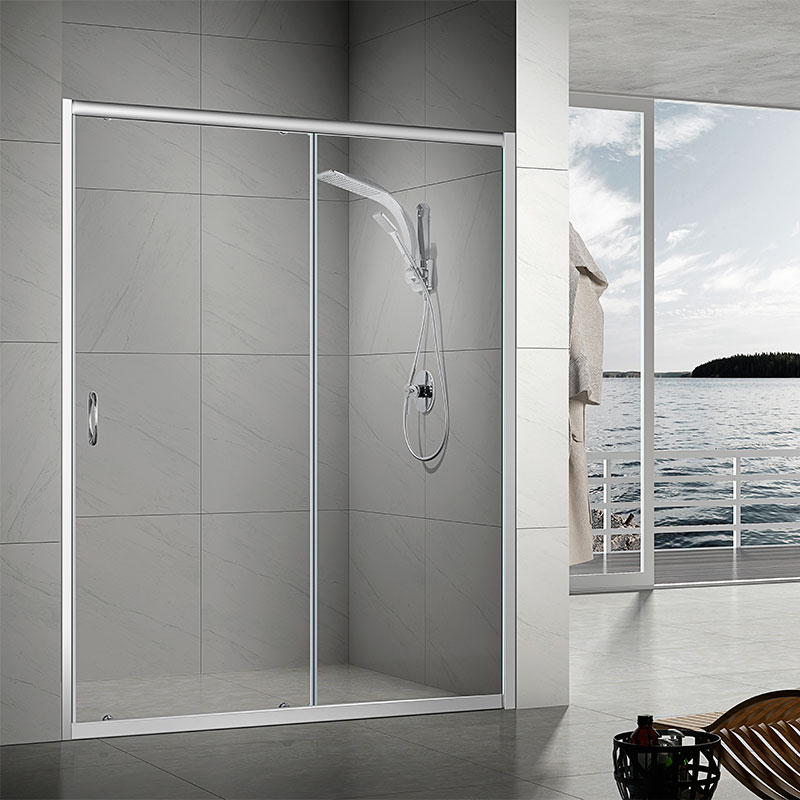

• SLIDING DOOR: One stationary panel and one
sliding door.
• SEMI-FRAMELESS GLASS: Premium 5/16 in. (8mm)
thick certified clear tempered glass with water-resistant & shatter-proof
film.
• QUALITY FINISHES: Premium metal hardware finishing
process prevents corrosion, rust, chipping and scratching and provides extended
protection for your door.
• ADJUSTMENT: This door offers up to 5 in. in
width adjustment by trimming the top and bottom guiderails to fit your opening.
• SMOOTH and SILENT GLIDING: Smooth roller to
track contact ensures a serene sliding experience.
• EASY INSTALL: This door was designed and
manufactured to be easily installed. Installation manual can be downloaded.
NY Warehouse：Please contact sales for stock information

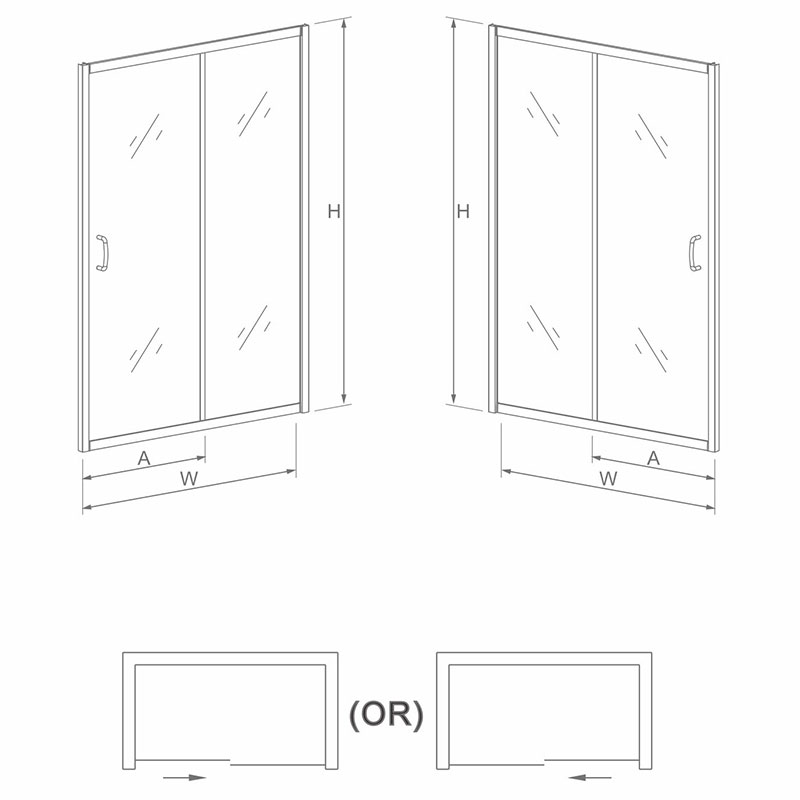

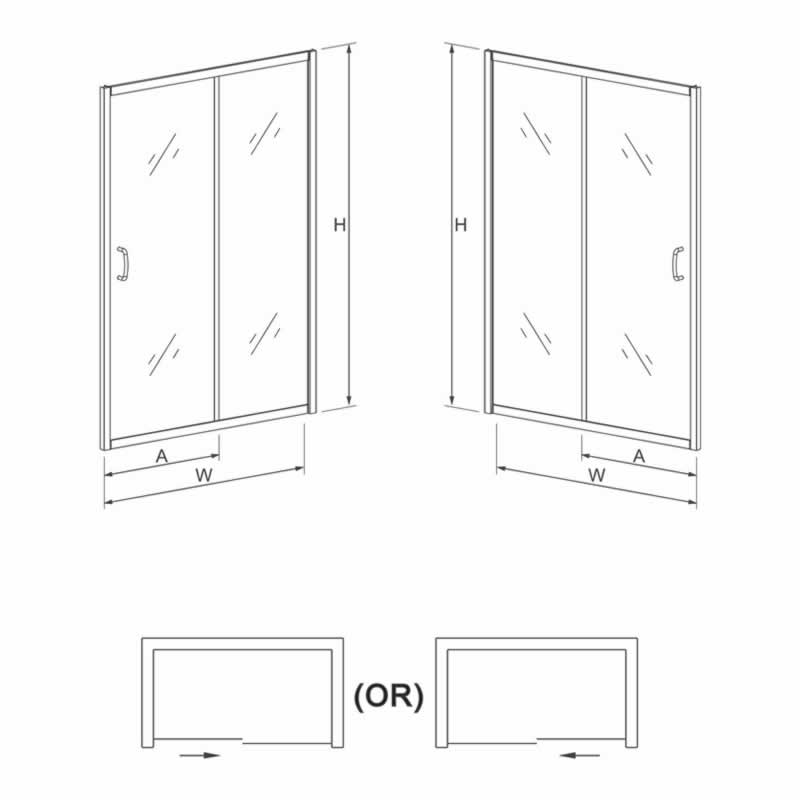

Calculation of the adjustment. Choose your actual size and we will tell you the product size you should choose and the size you need to cut.
LY8101
Model Number：LY8101
|
Model Size: |
Walk-In Opening: |
|
44-48 in. W x75 in. H |
16 in.~20 in. |
|
55-60 in. W x75 in. H |
21 in.~26 in. |
Configuration consists of:
Stationary Panel and Sliding Door
Glass：
Premium 5/16 in. (8mm) thick certified clear tempered glass
- Waterproof and anti-fouling explosion-proof film
- Frameless glass design creates an open, airy feeling
- Anodized metal guide rails can be trimmed up to4 in. for width adjustment, please refer to the Adjustment Calculations
- Anodized metal wall profiles
- Reversible for a right or left door opening installation
Hardware Finish:
Polished Chrome
- Anti-splash guard to prevent water spills
- IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, back walls, etc.)
- Professional installation is required
- Specially designed rollers create a smooth, quiet gliding operation
- Large wheel assembly creates effortless sliding action
- ATTENTION! This model has NO adjustment for out-of-plumb (uneven) walls
- Wall profiles accommodate up to 3/8 in. for out-of-plumb (uneven walls)
- PASGO Shower Doors have ten years Limited Manufacturer Warranty (Brushed Gold and Matte Black finishes limited to 1 (one) year warranty)
